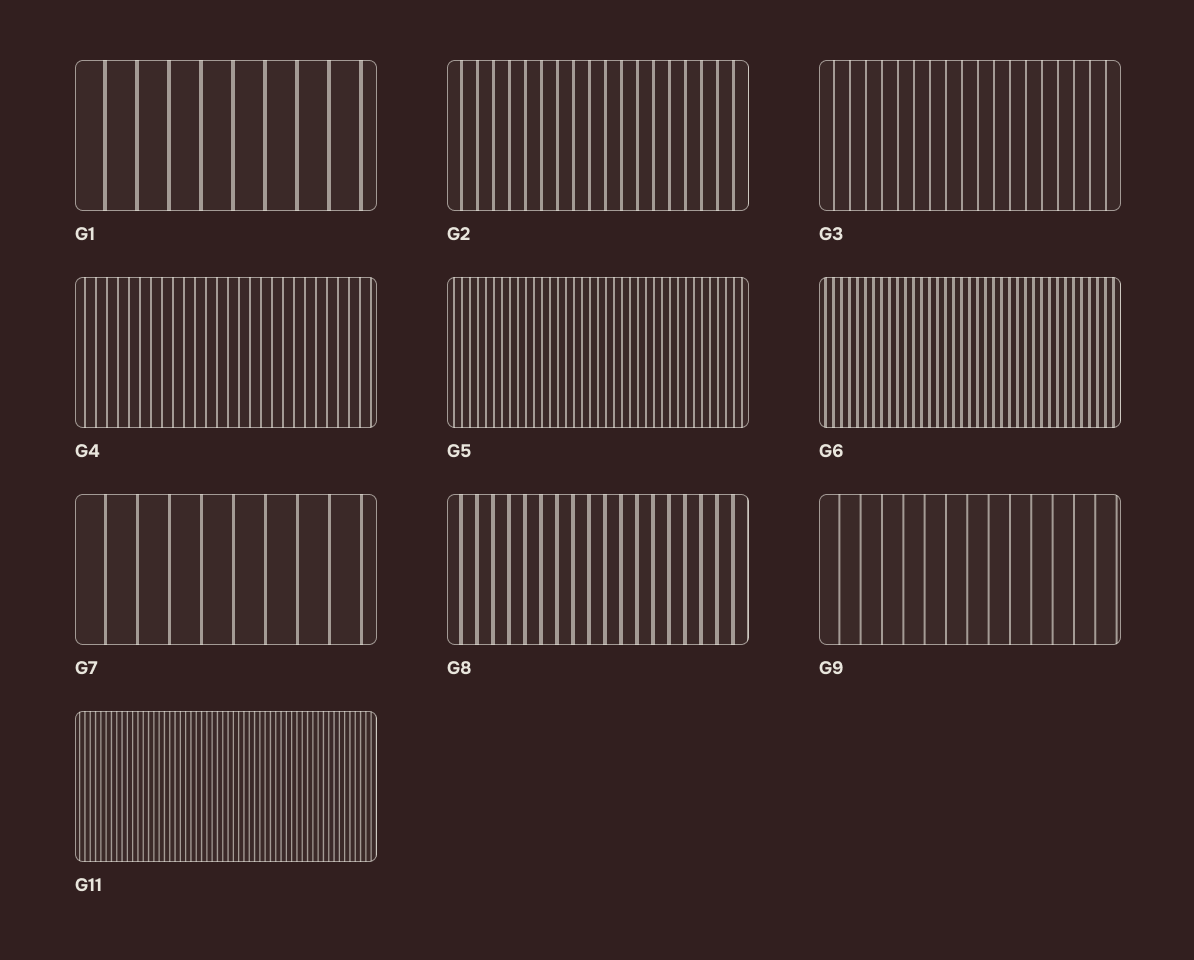

G Line

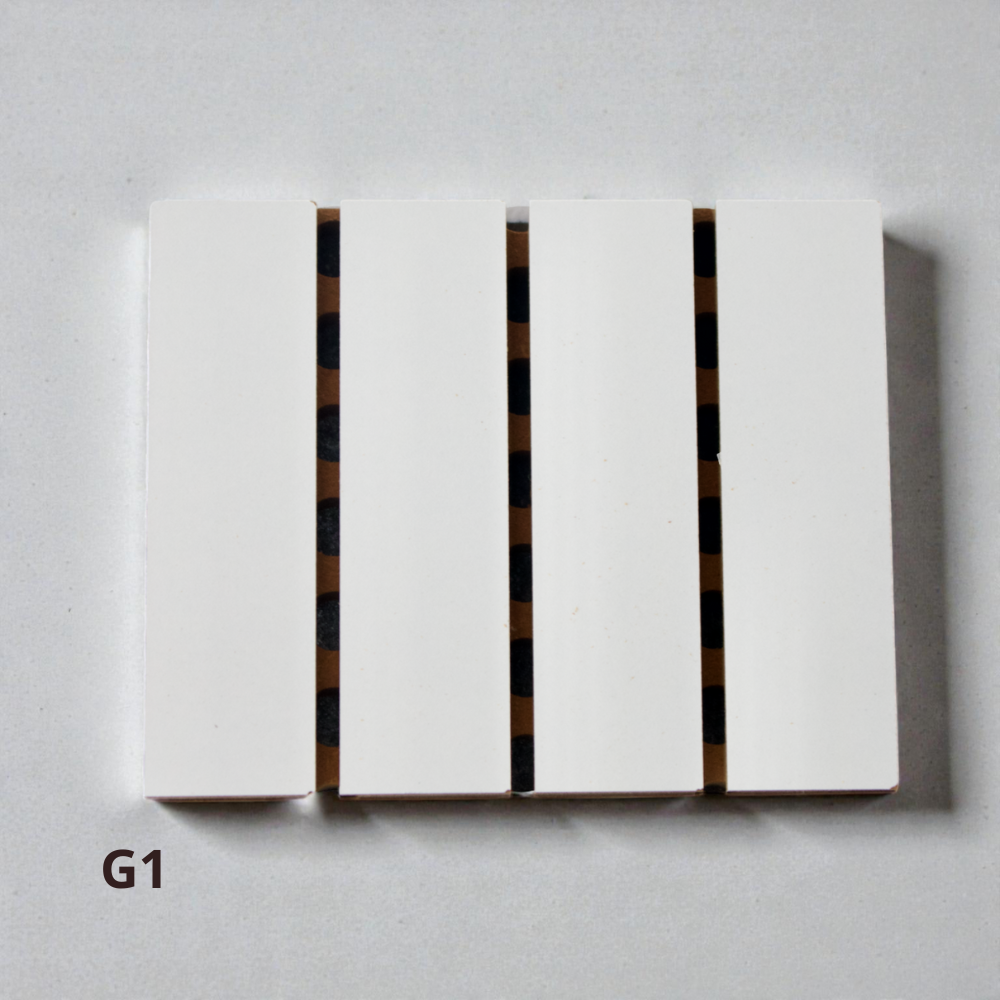

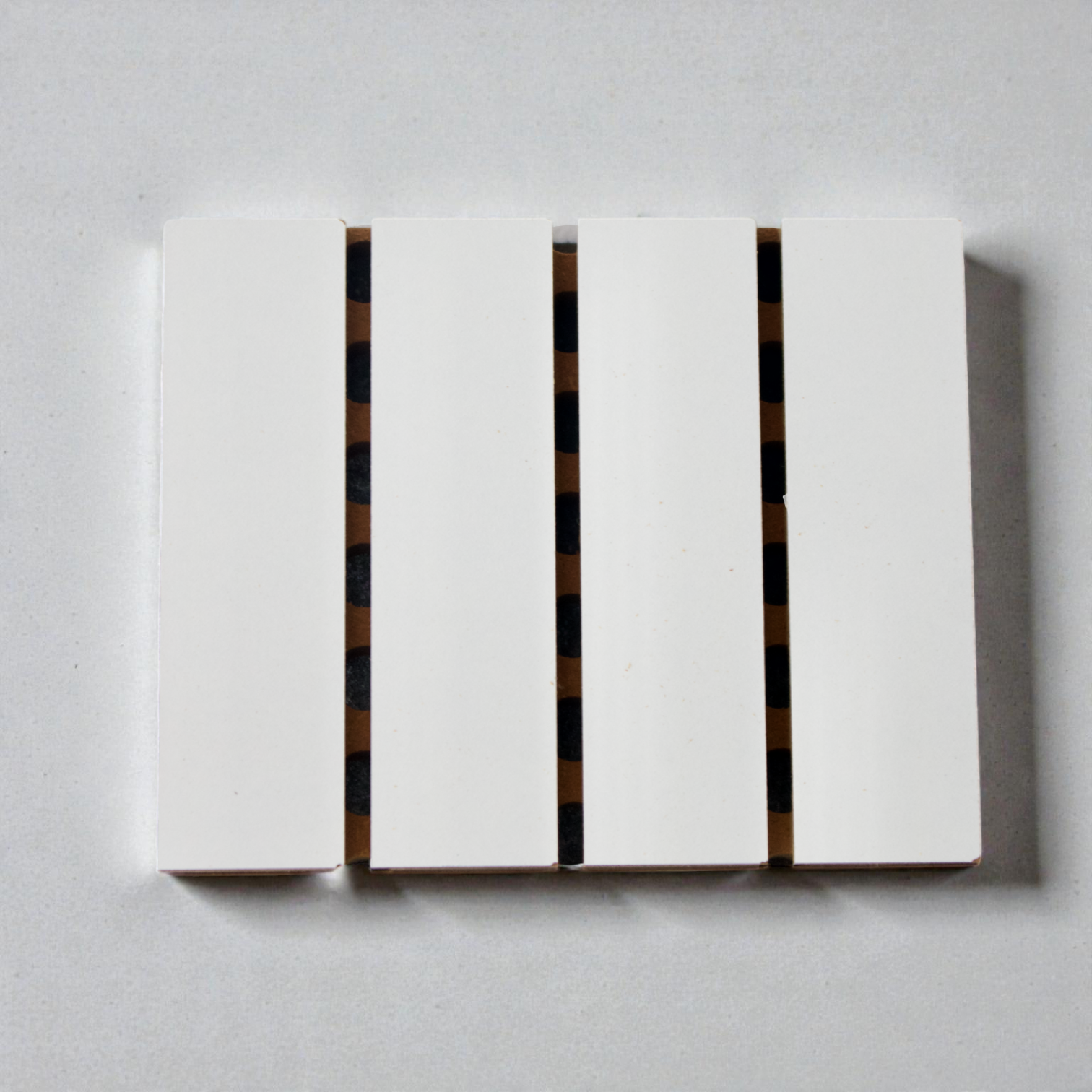

G1
PATTERN
4mm (5/32″) grooves every 28mm (1.1″)
material
MDF with natural veneer | Melamine
FIRE rating
B-s2. d0 (Euroclass)
product dimensions
Planks of 2400 mm (94 1/2") x 128 mm (5 1/16")
installation
Tongue and groove

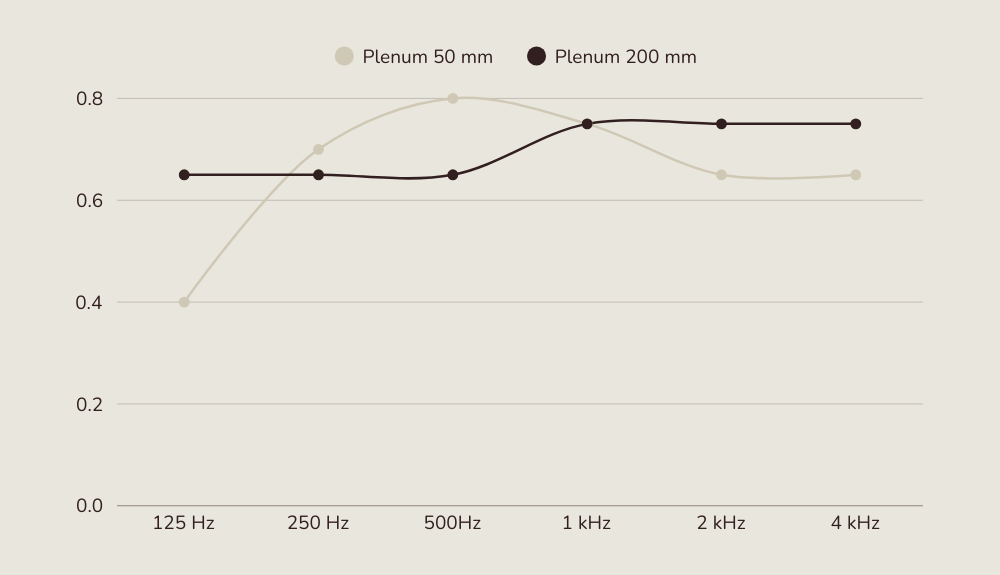

Absorption curve

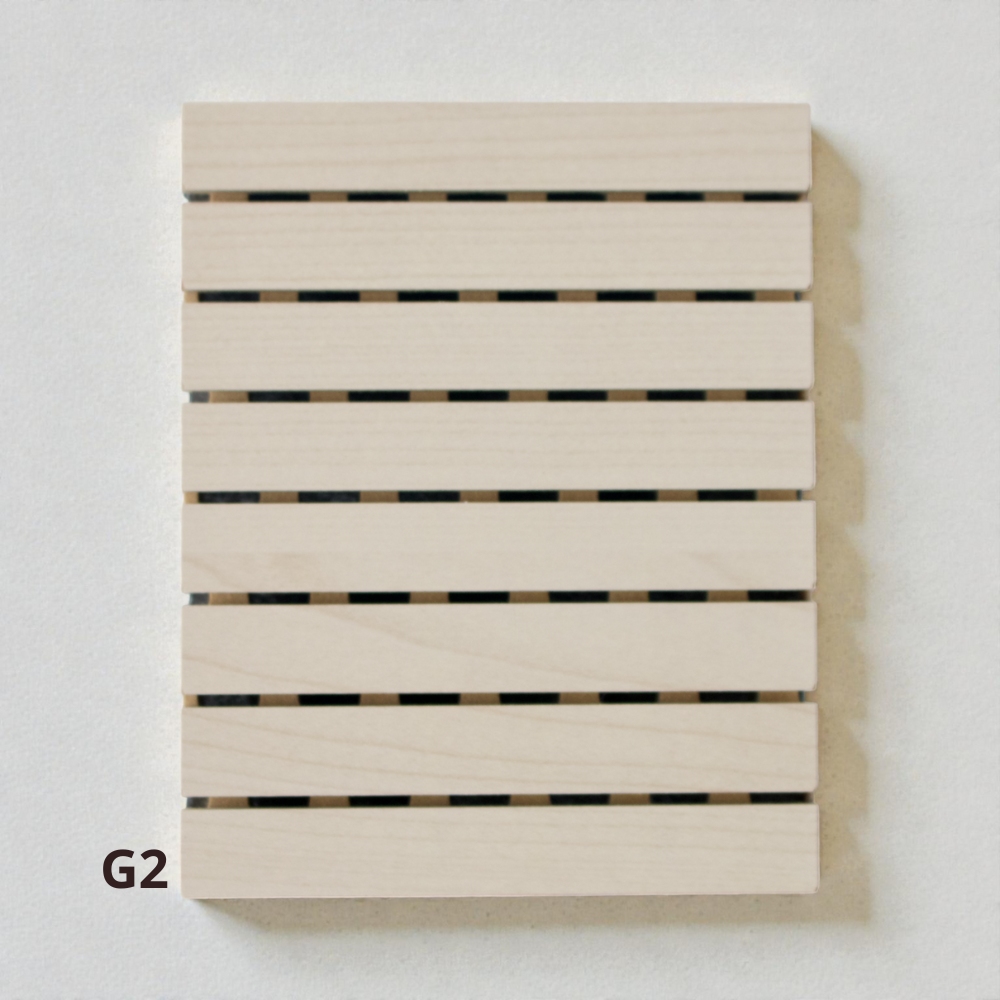

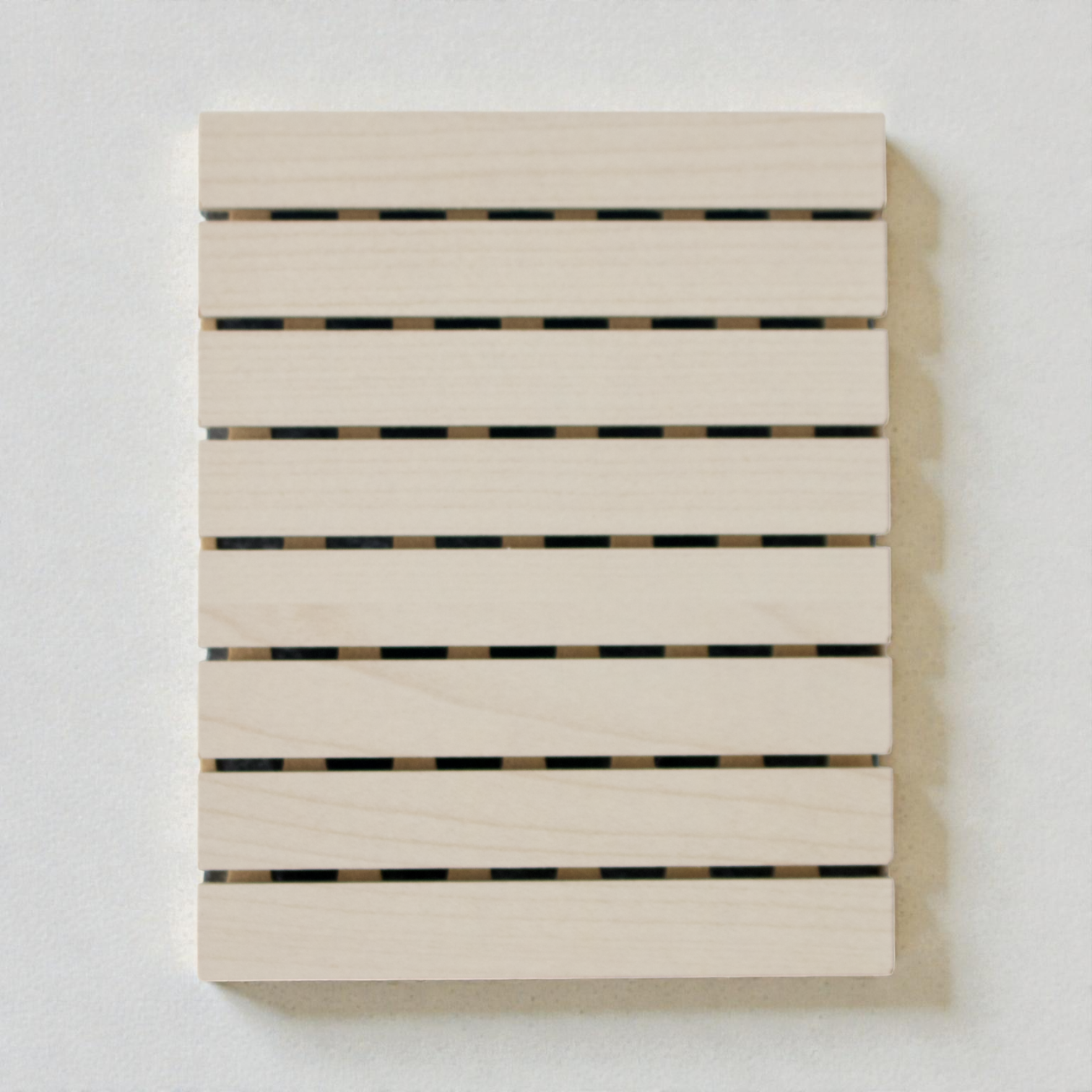

G2
PATTERN
3mm (1/8″) grooves every 13mm (1/2″)
material
MDF with natural veneer | Melamine
FIRE rating
B-s2. d0 (Euroclass)
product dimensions
Planks of 2400 mm (94 1/2") x 128 mm (5 1/16")
installation
Tongue and groove

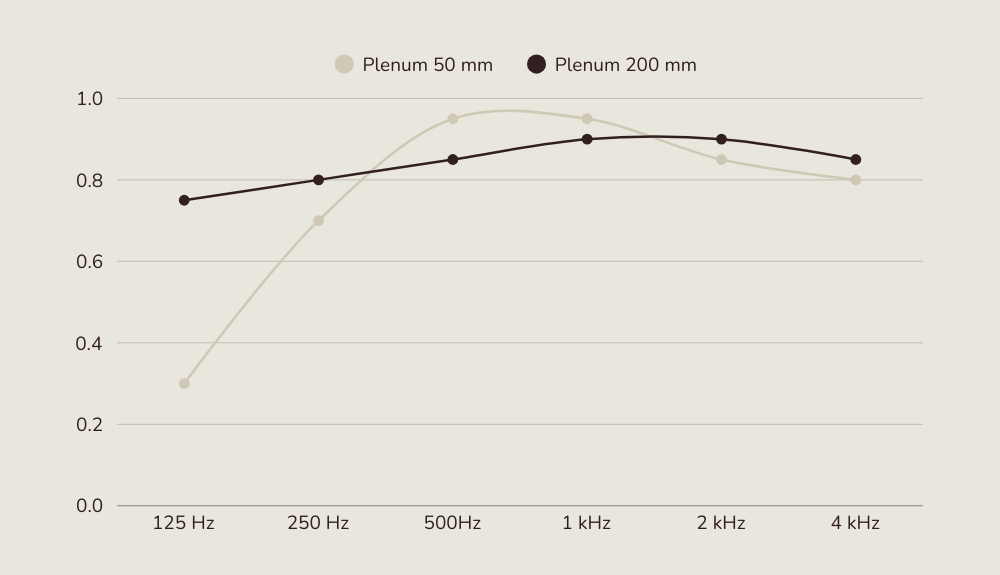

Absorption curve

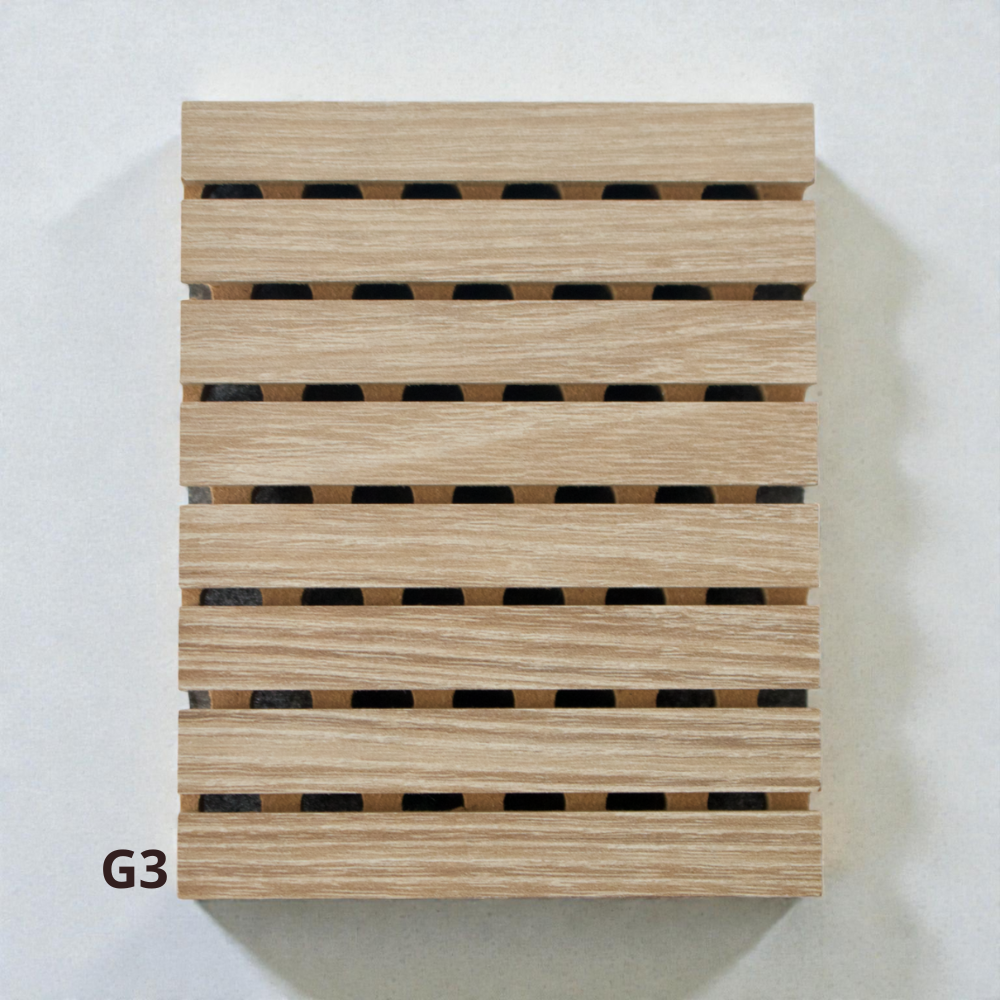

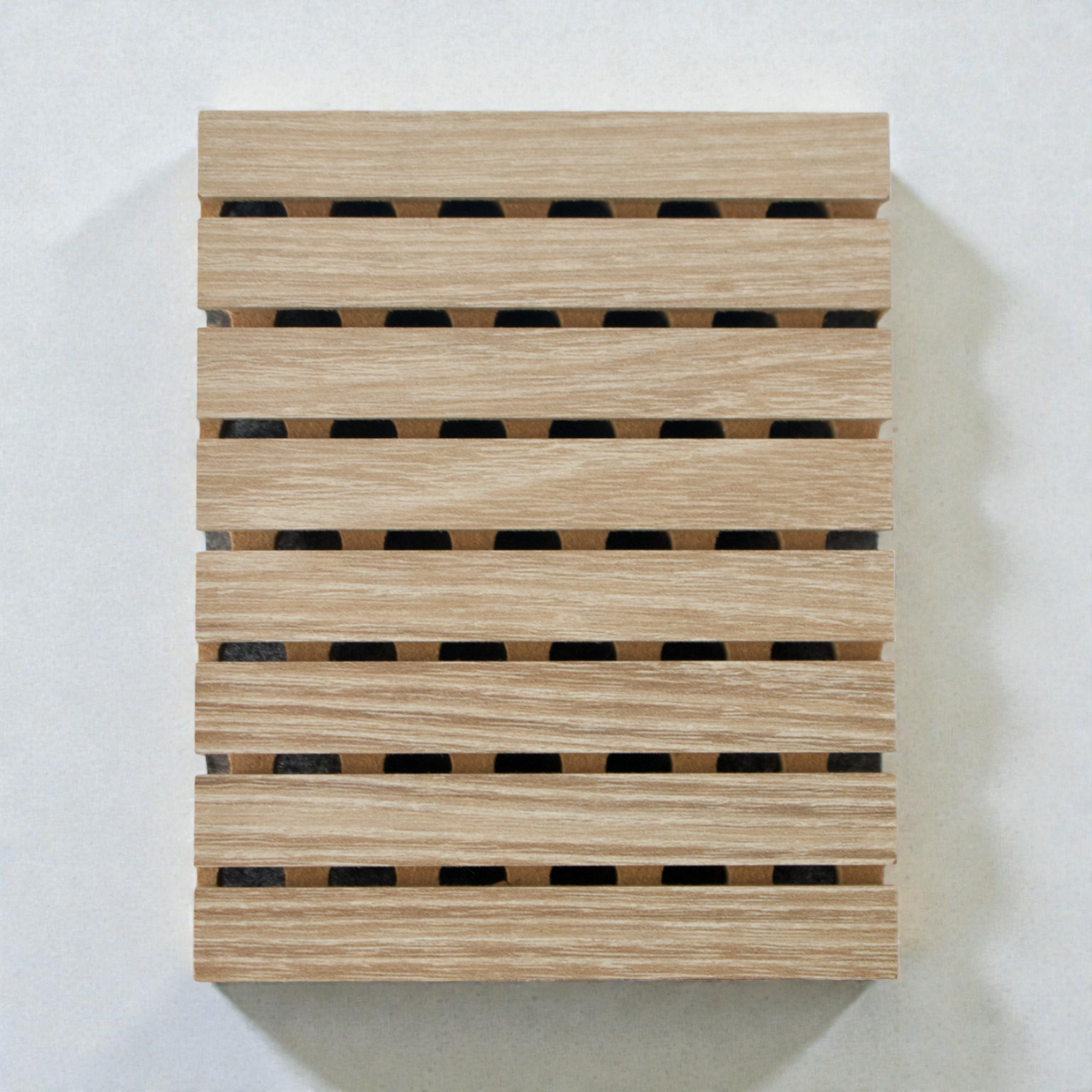

G3
PATTERN
2mm (5/64″) grooves every 14mm (9/16″)
material
MDF with natural veneer | Melamine
FIRE rating
B-s2. d0 (Euroclass)
product dimensions
Planks of 2400 mm (94 1/2") x 128 mm (5 1/16")
installation
Tongue and groove

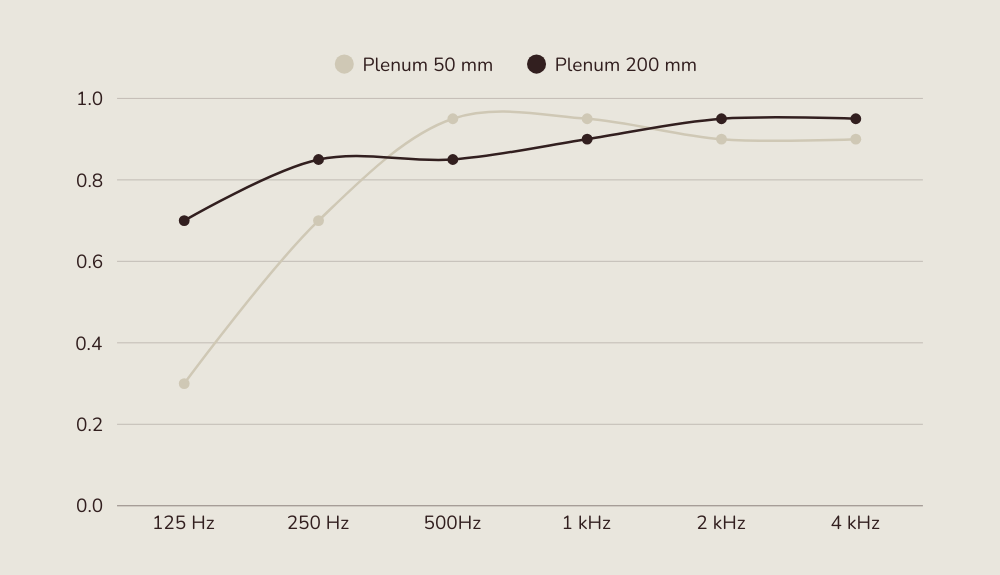

Absorption curve

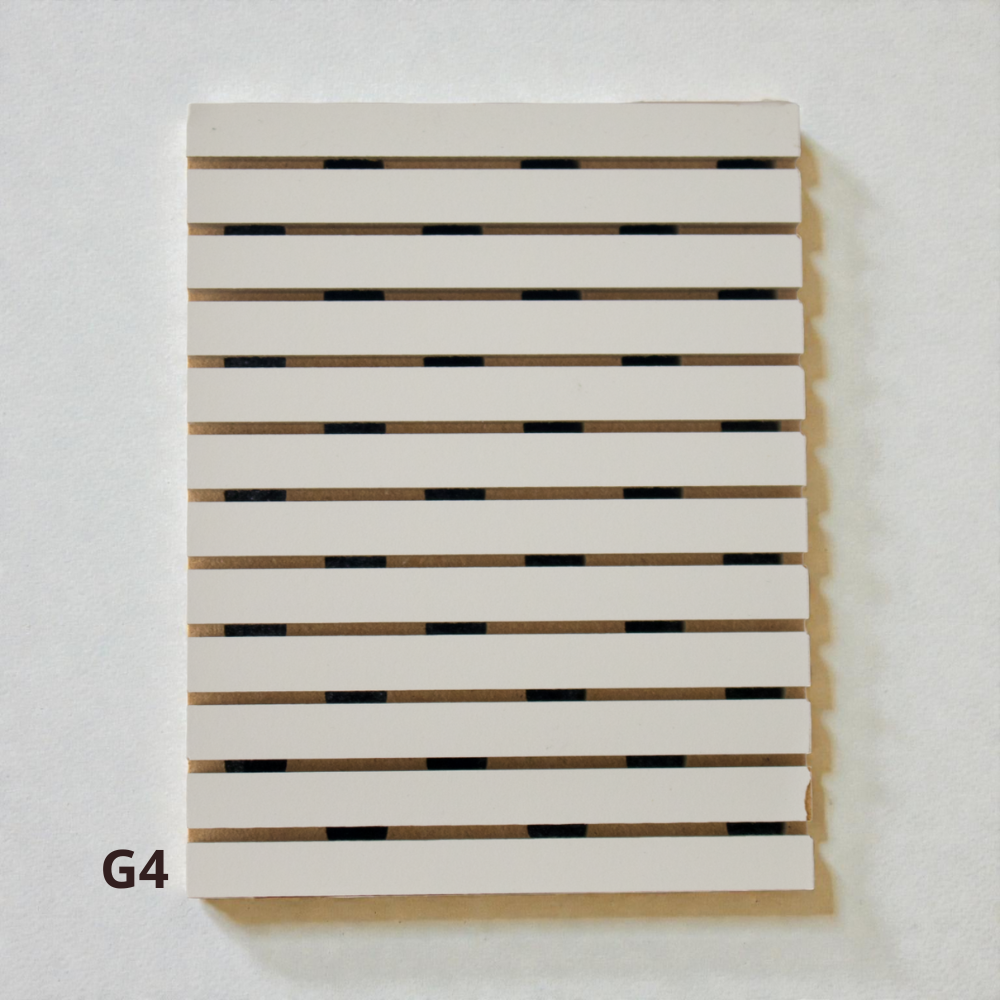

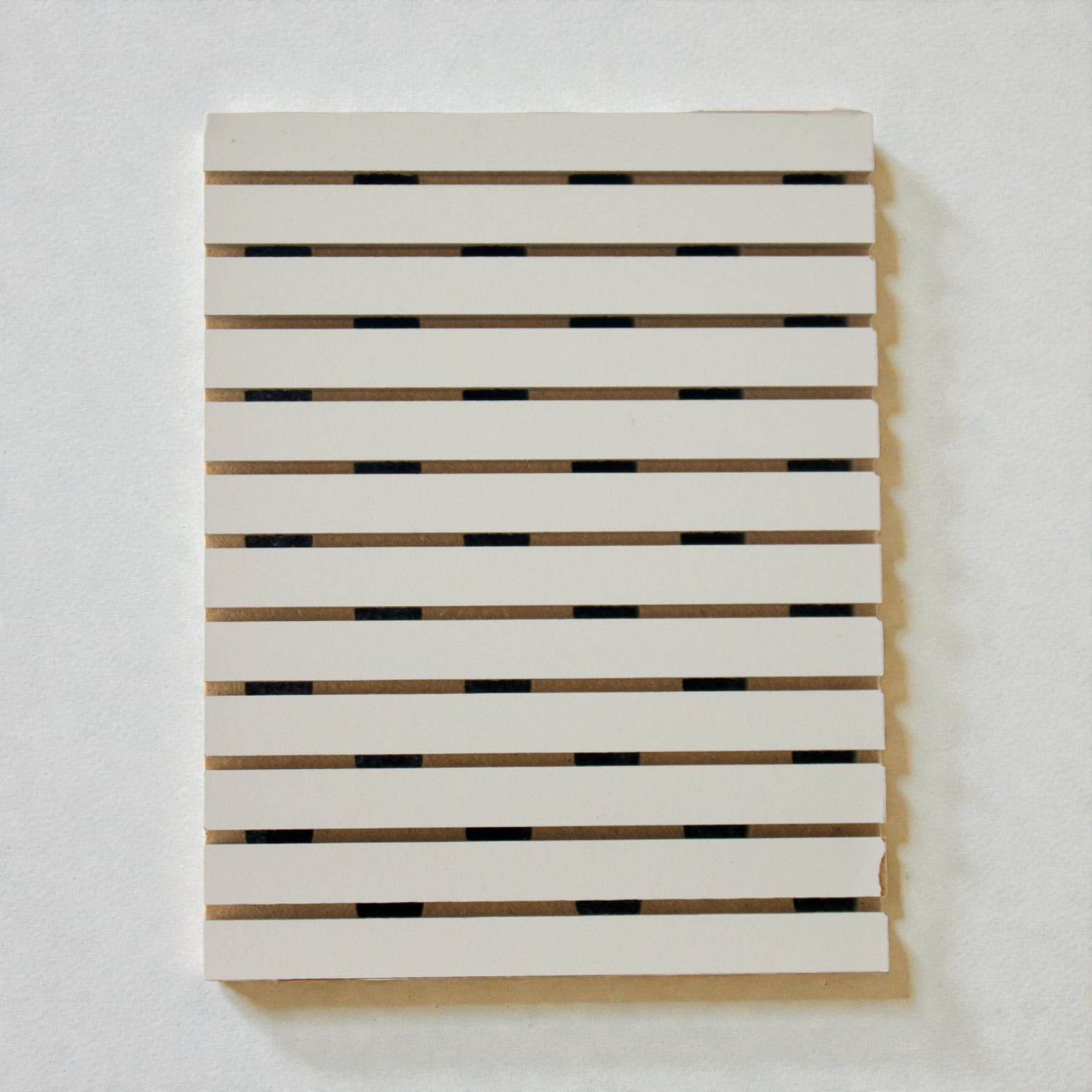

G4
PATTERN
2 mm (5/64″) grooves every 9 mm (23/64″)
material
MDF with natural veneer | Melamine
FIRE rating
B-s2. d0 (Euroclass)
product dimensions
Planks of 2400 mm (94 1/2") x 128 mm (5 1/16")
installation
Tongue and groove
Absorption curve

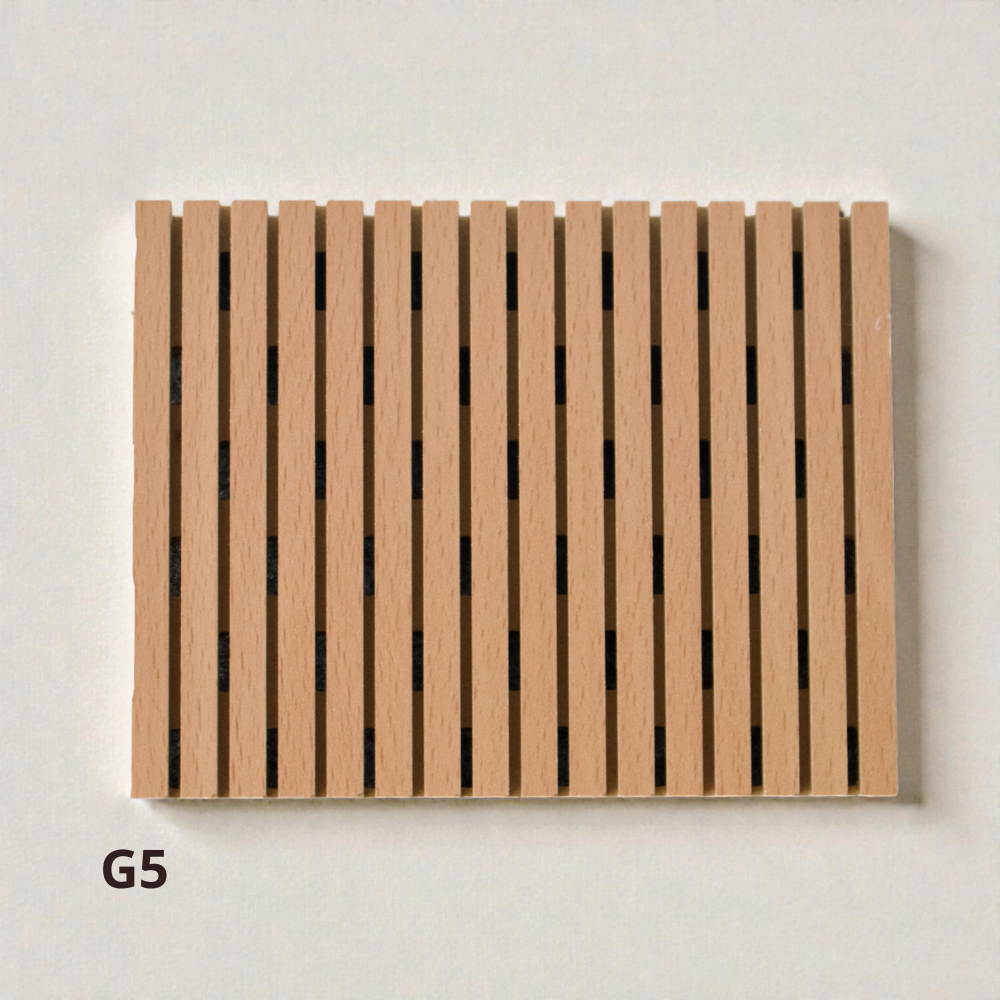

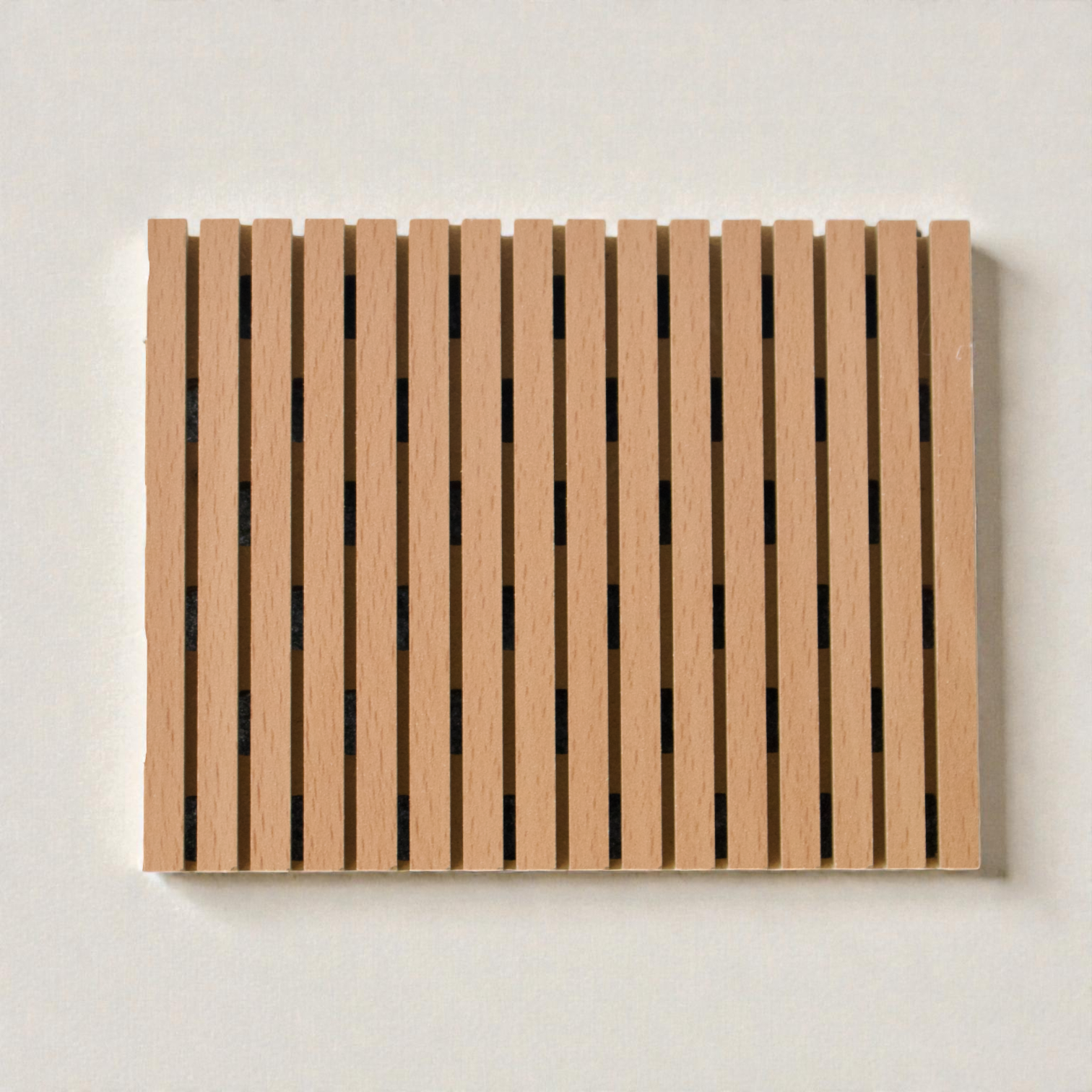

G5
PATTERN
2 mm (5/64″) grooves every 6 mm (15/64″)
material
MDF with natural veneer | Melamine
FIRE rating
B-s2. d0 (Euroclass)
product dimensions
Planks of 2400 mm (94 1/2") x 128 mm (5 1/16")
installation
Tongue and groove

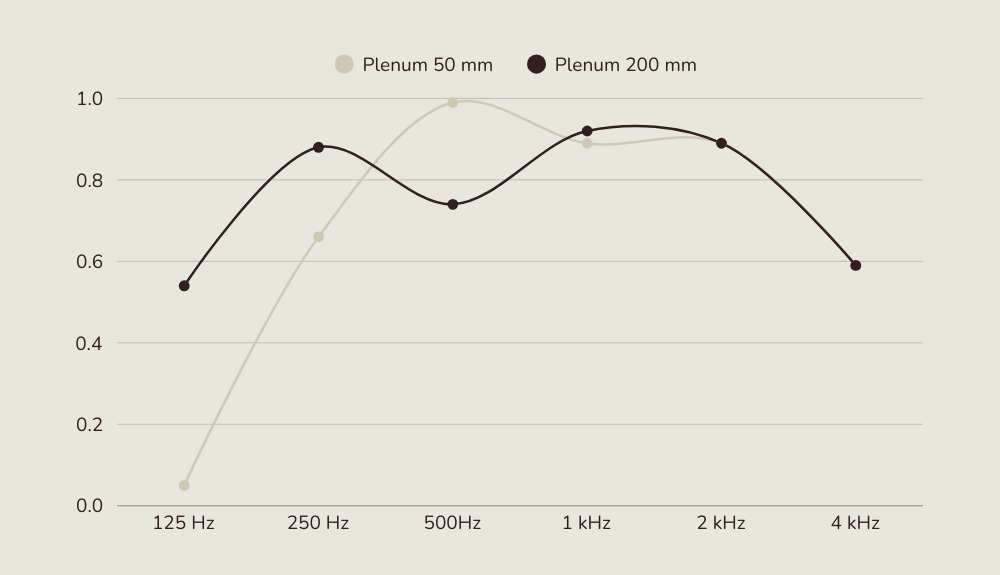

Absorption curve

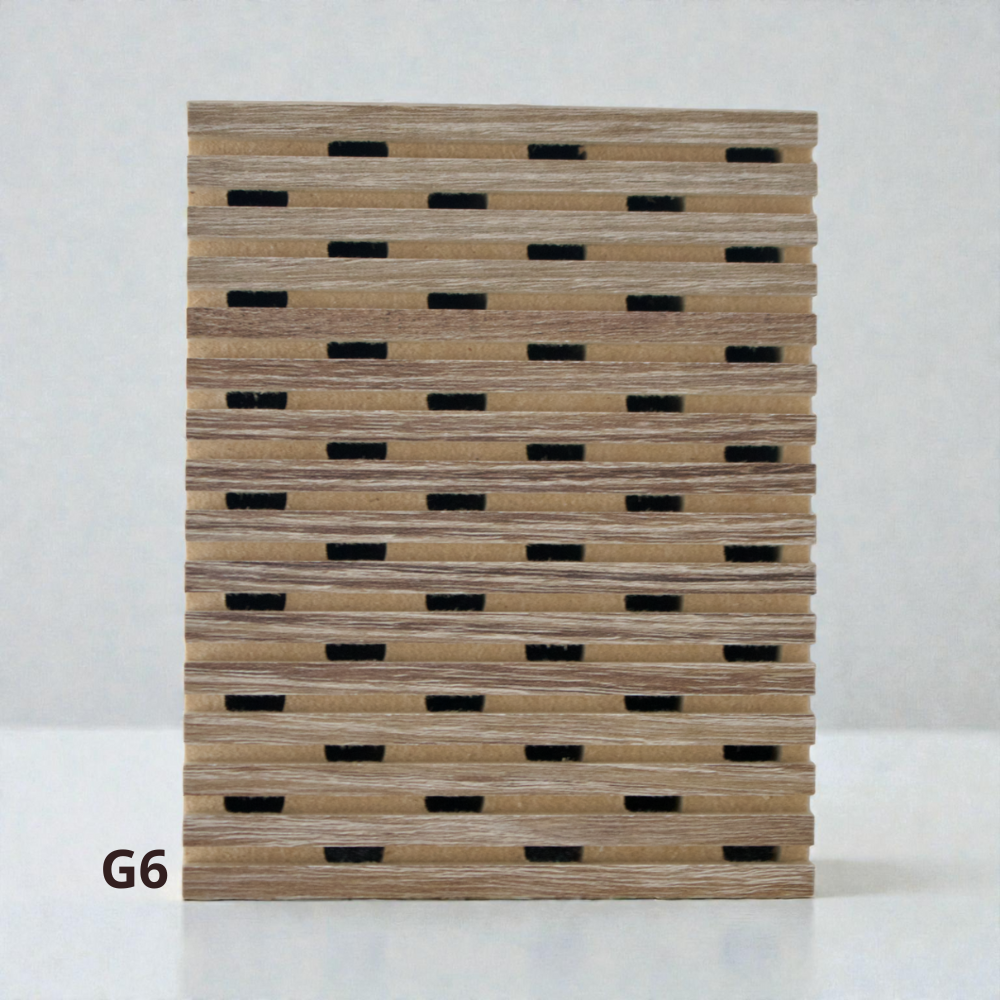

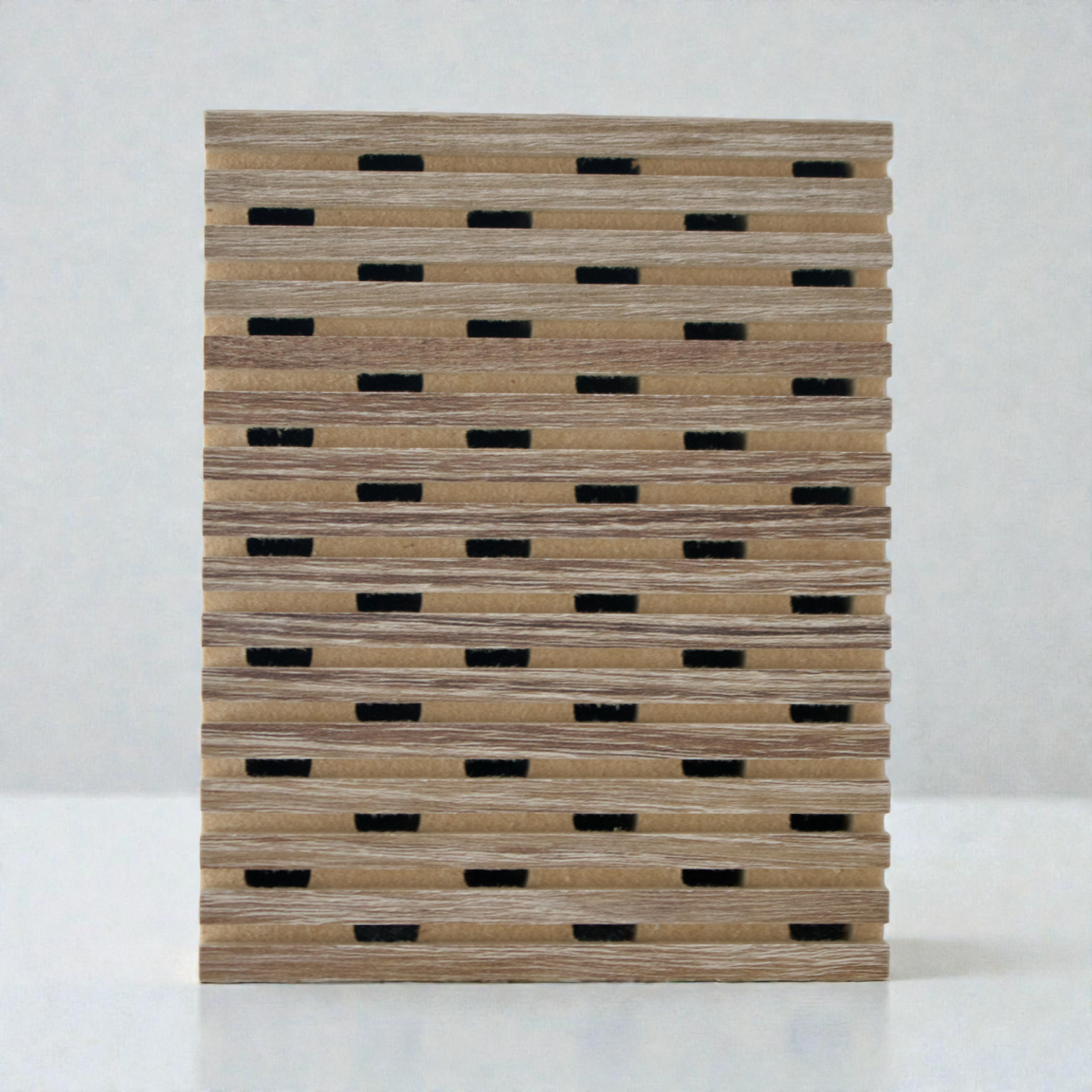

G6
PATTERN
3 mm (1/8″) grooves every 5 mm (13/64″)
material
MDF with natural veneer | Melamine
FIRE rating
B-s2. d0 (Euroclass)
product dimensions
Planks of 2400 mm (94 1/2") x 128 mm (5 1/16")
installation
Tongue and groove

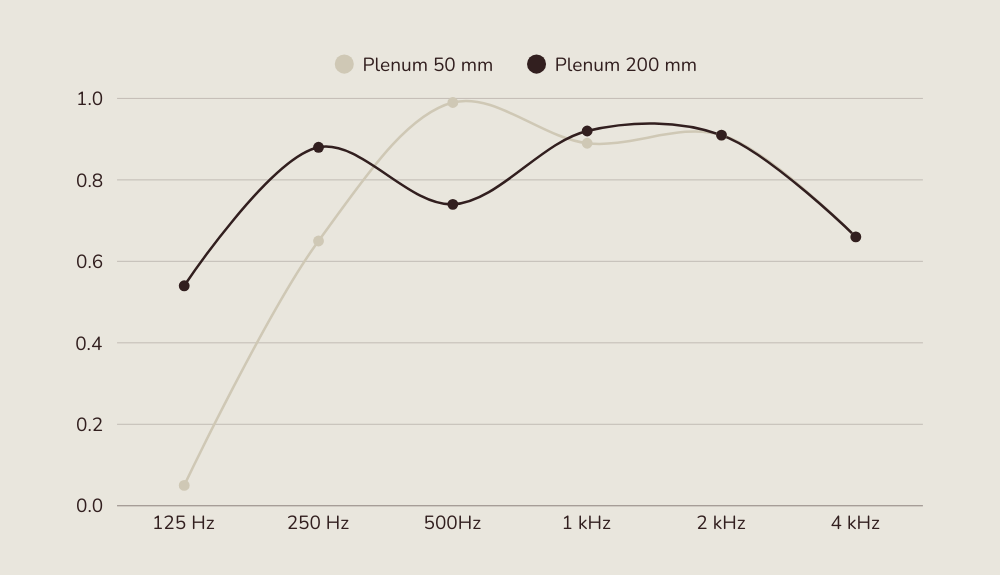

Absorption curve

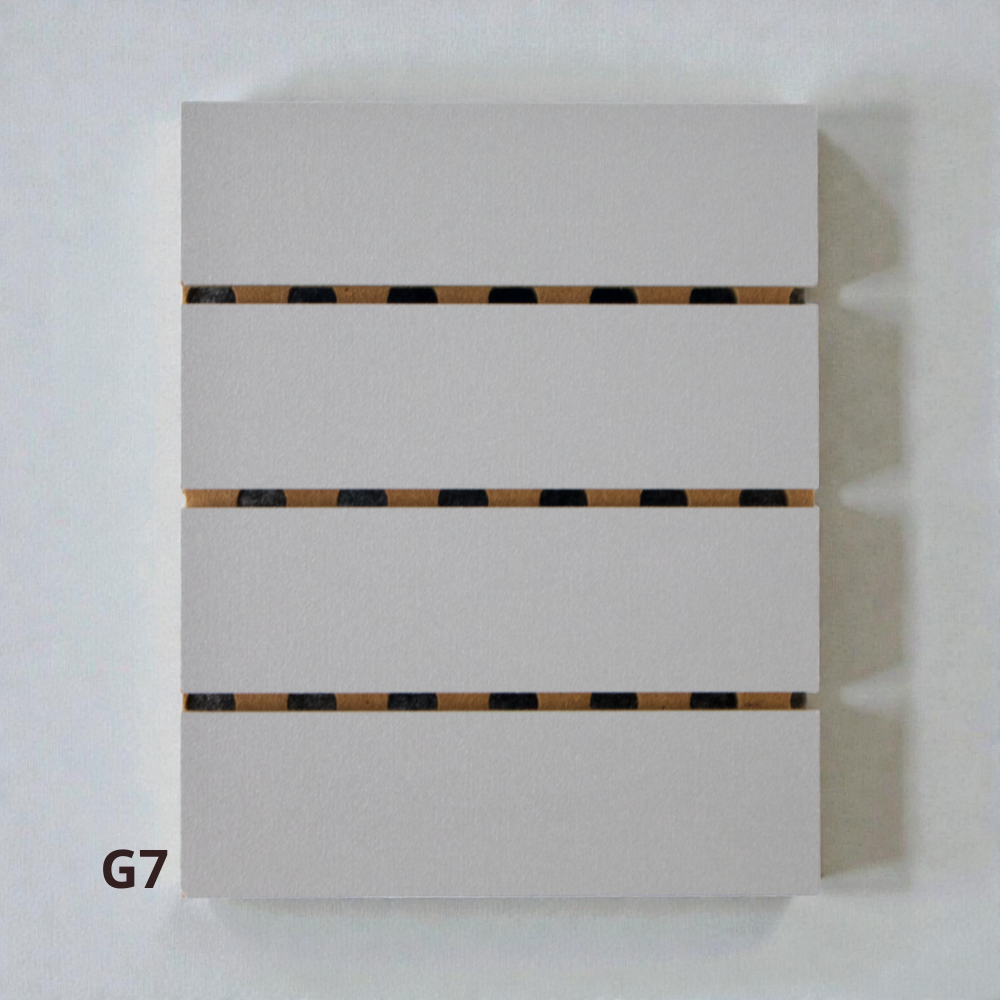

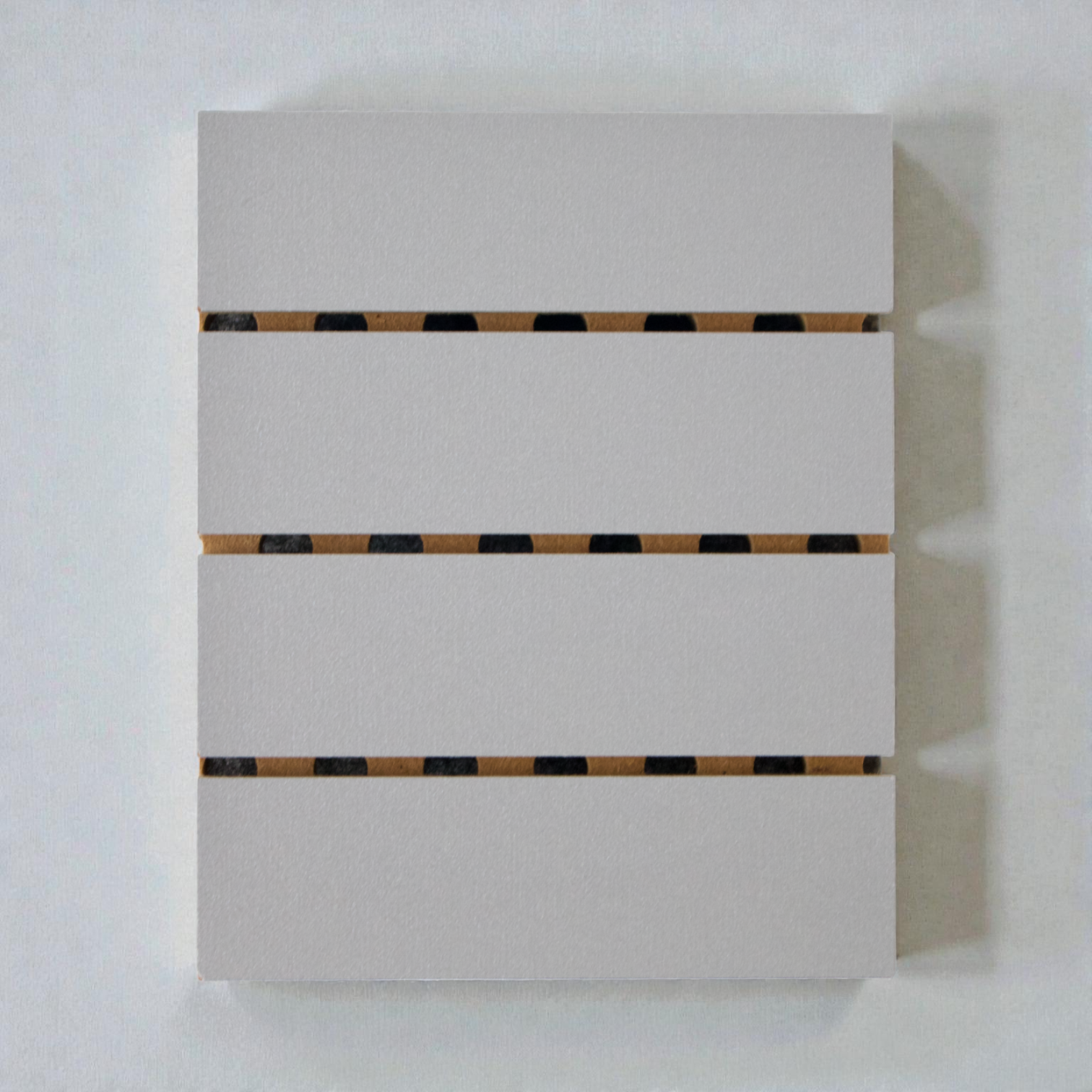

G7
PATTERN
3 mm (1/8″) grooves every 29 mm (1 9/64″)
material
MDF with natural veneer | Melamine
FIRE rating
B-s2. d0 (Euroclass)
product dimensions
Planks of 2400 mm (94 1/2") x 128 mm (5 1/16")
installation
Tongue and groove

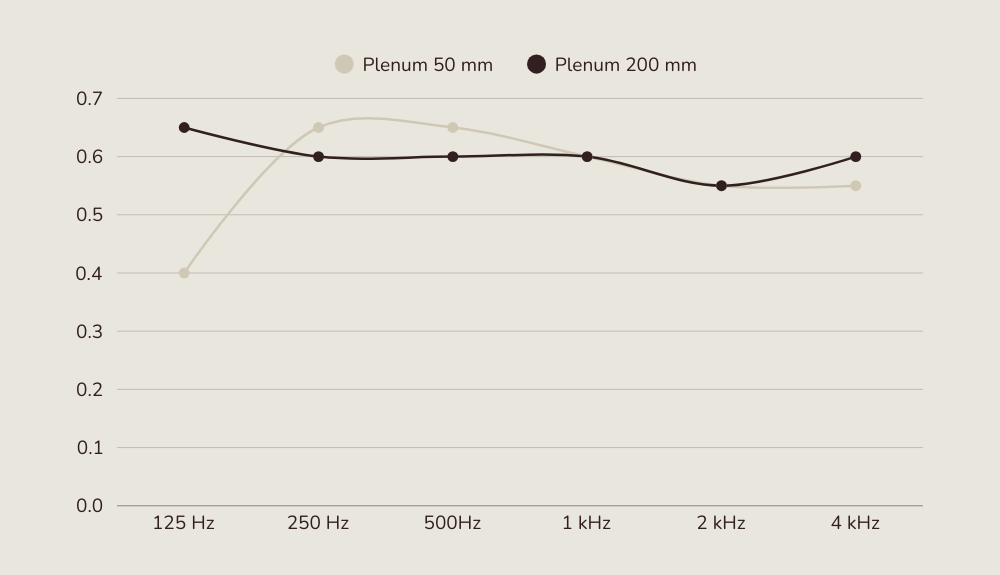

Absorption curve

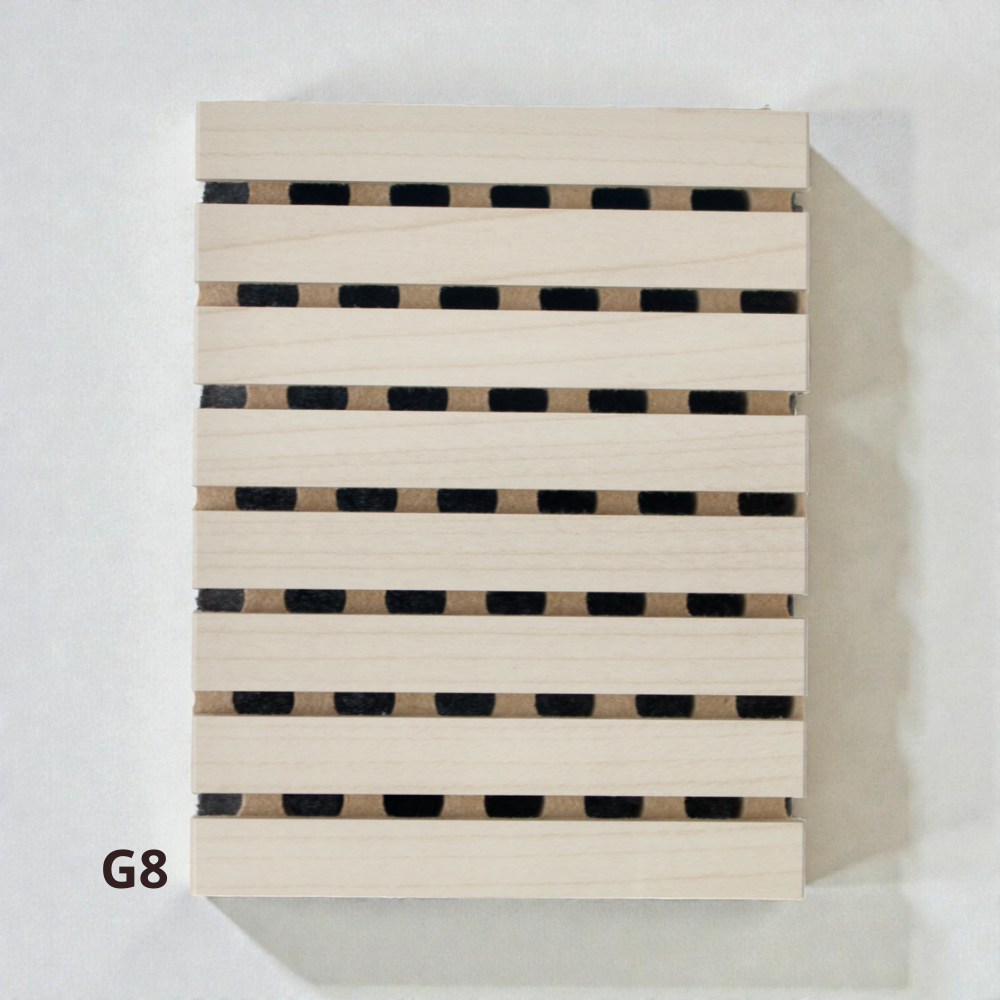

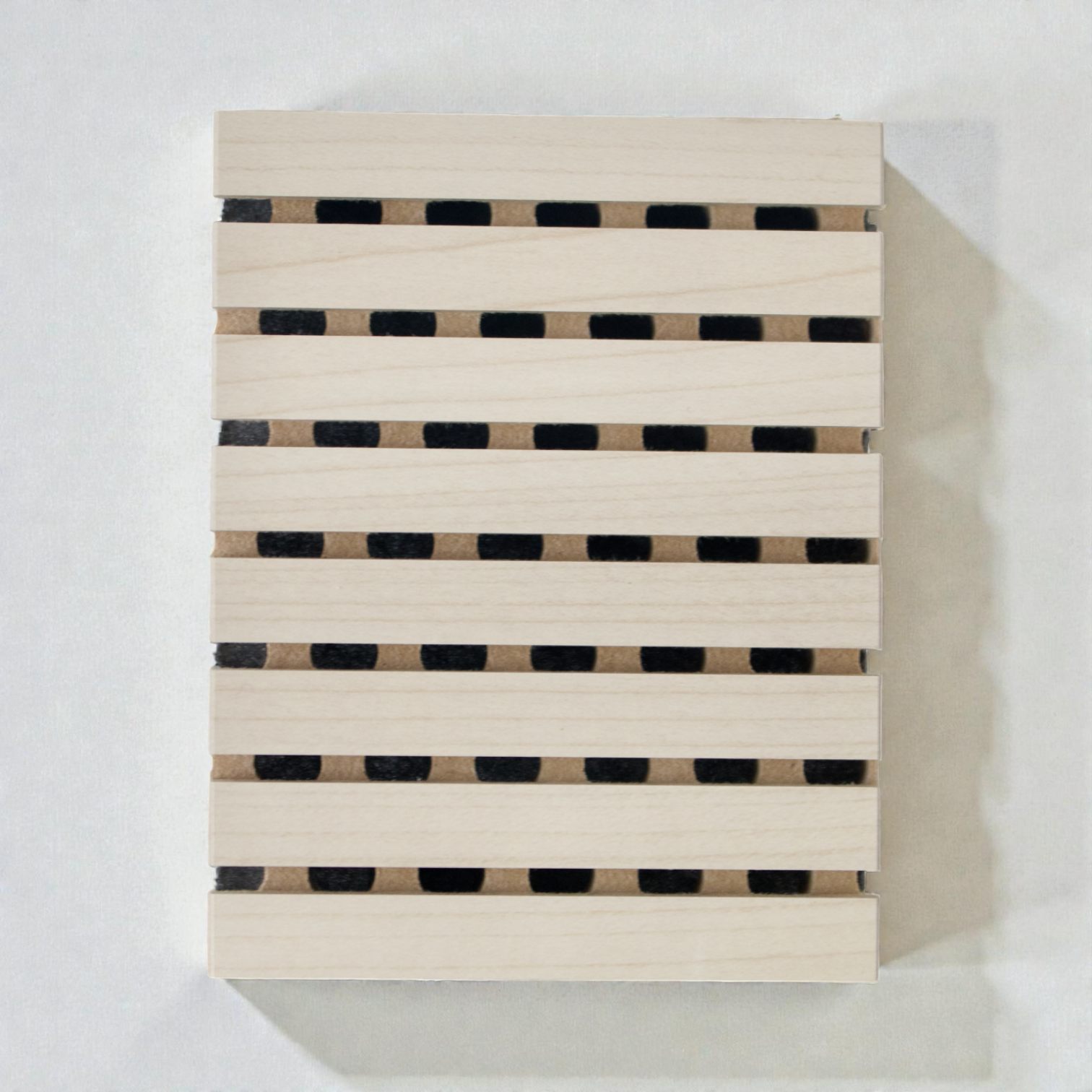

G8
PATTERN
4mm (5/32″) grooves every 12 mm (15/32")
material
MDF with natural veneer | Melamine
FIRE rating
B-s2. d0 (Euroclass)
product dimensions
Planks of 2400 mm (94 1/2") x 128 mm (5 1/16")
installation
Tongue and groove
Absorption curve

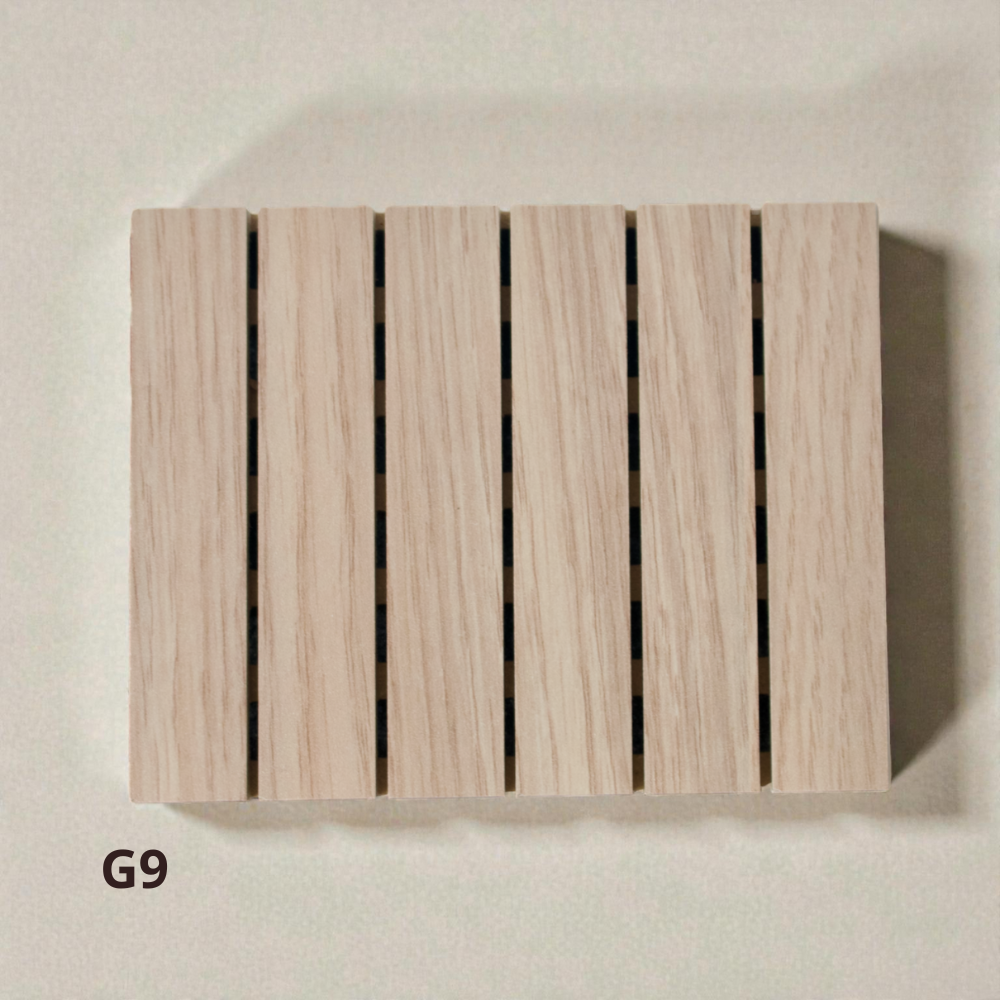

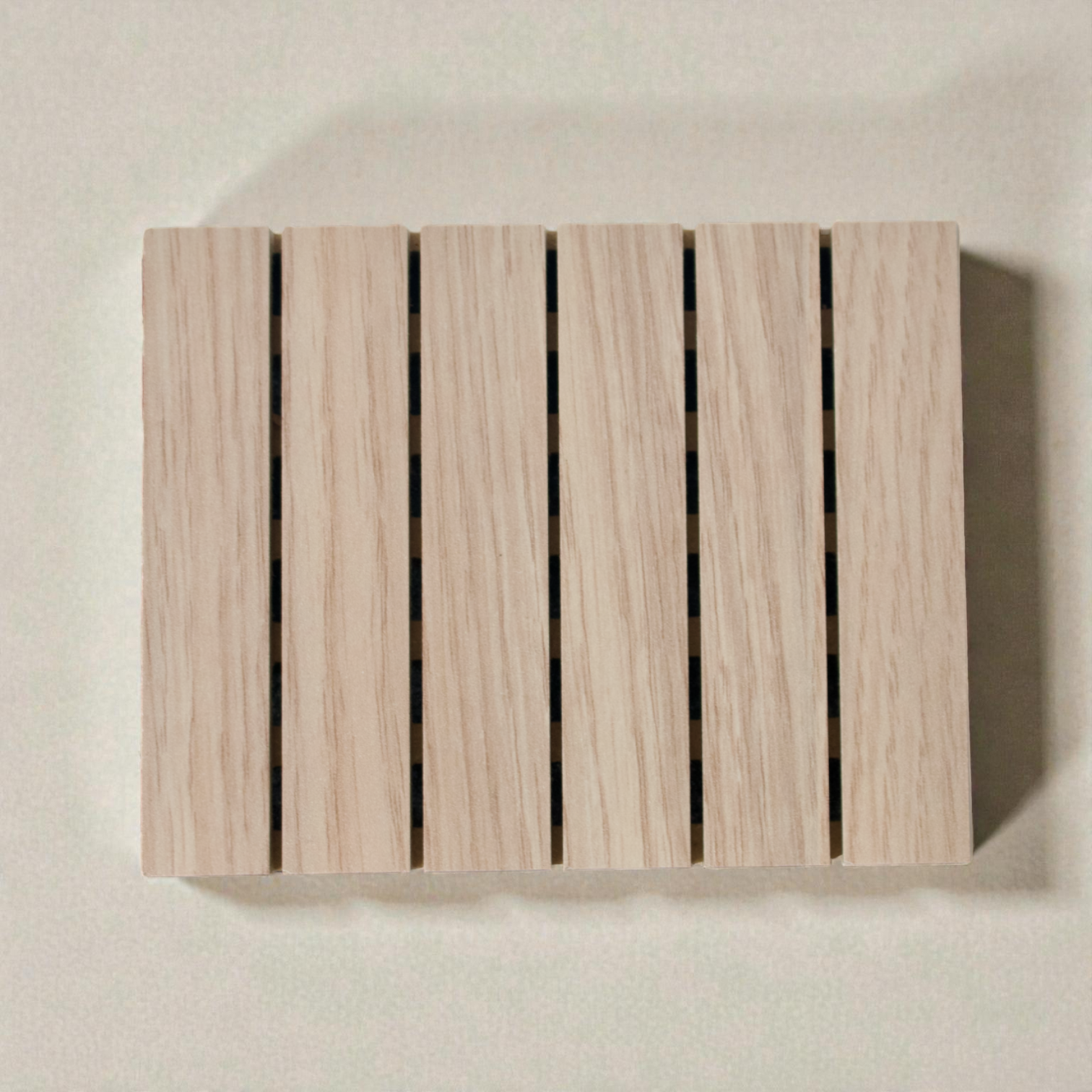

G9
PATTERN
2 mm (5/64″) grooves every 19,33 mm (49/64")
material
MDF with natural veneer | Melamine
FIRE rating
B-s2. d0 (Euroclass)
product dimensions
Planks of 2400 mm (94 1/2") x 128 mm (5 1/16")
installation
Tongue and groove

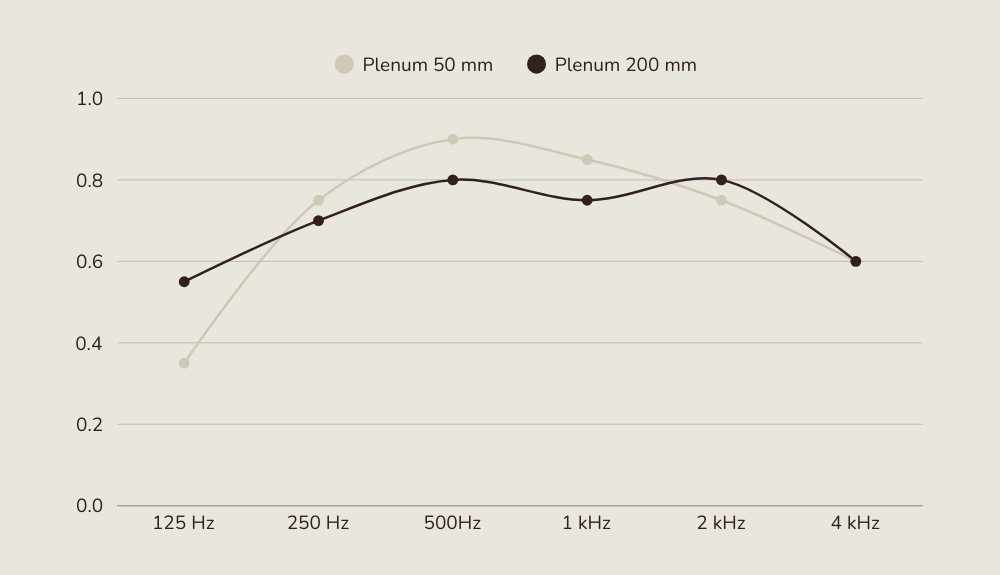

Absorption curve
G11
PATTERN
1,3 mm (1/16″) grooves every 4 mm (5/32″)
material
MDF with natural veneer | Melamine
FIRE rating
B-s2. d0 (Euroclass)
product dimensions
Planks of 2400 mm (94 1/2") x 128 mm (5 1/16")
installation
Tongue and groove

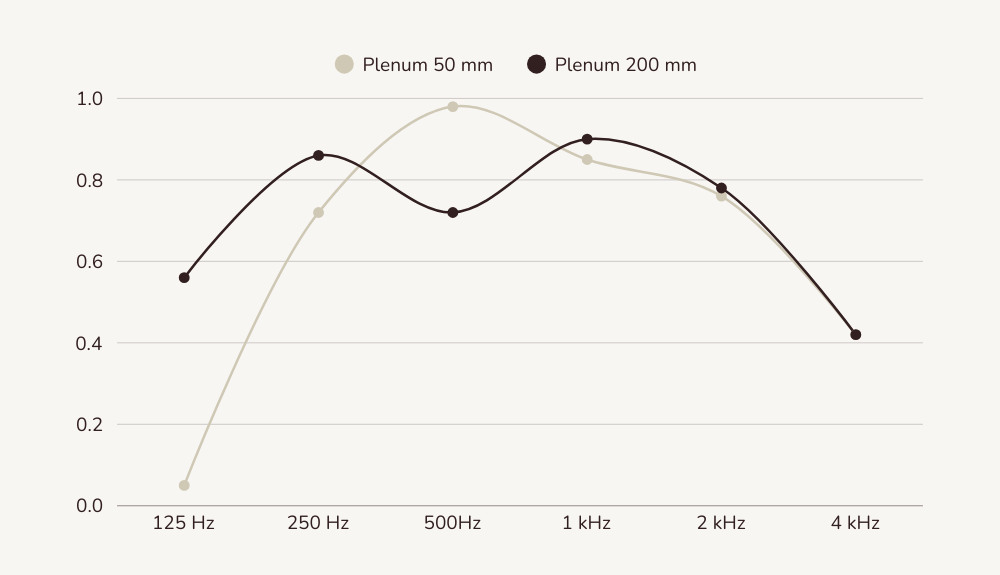

Absorption curve
